MIXING MACHINE
IVM 10
investment mixing machine
Contact Sales
IVM 10
Investment Mixing
The IVM 10 investment mixing this model can mixed the investment up to 10 Kg in just 4 minutes, ready for immediate pouring into flask
High efficient Investment dispensing rate
The IVM 10 investment mixer is equipped with a large stainless steel ball valve, offering durability and an elegant appearance. It ensures rapid investment dispensing and is easy to clean.

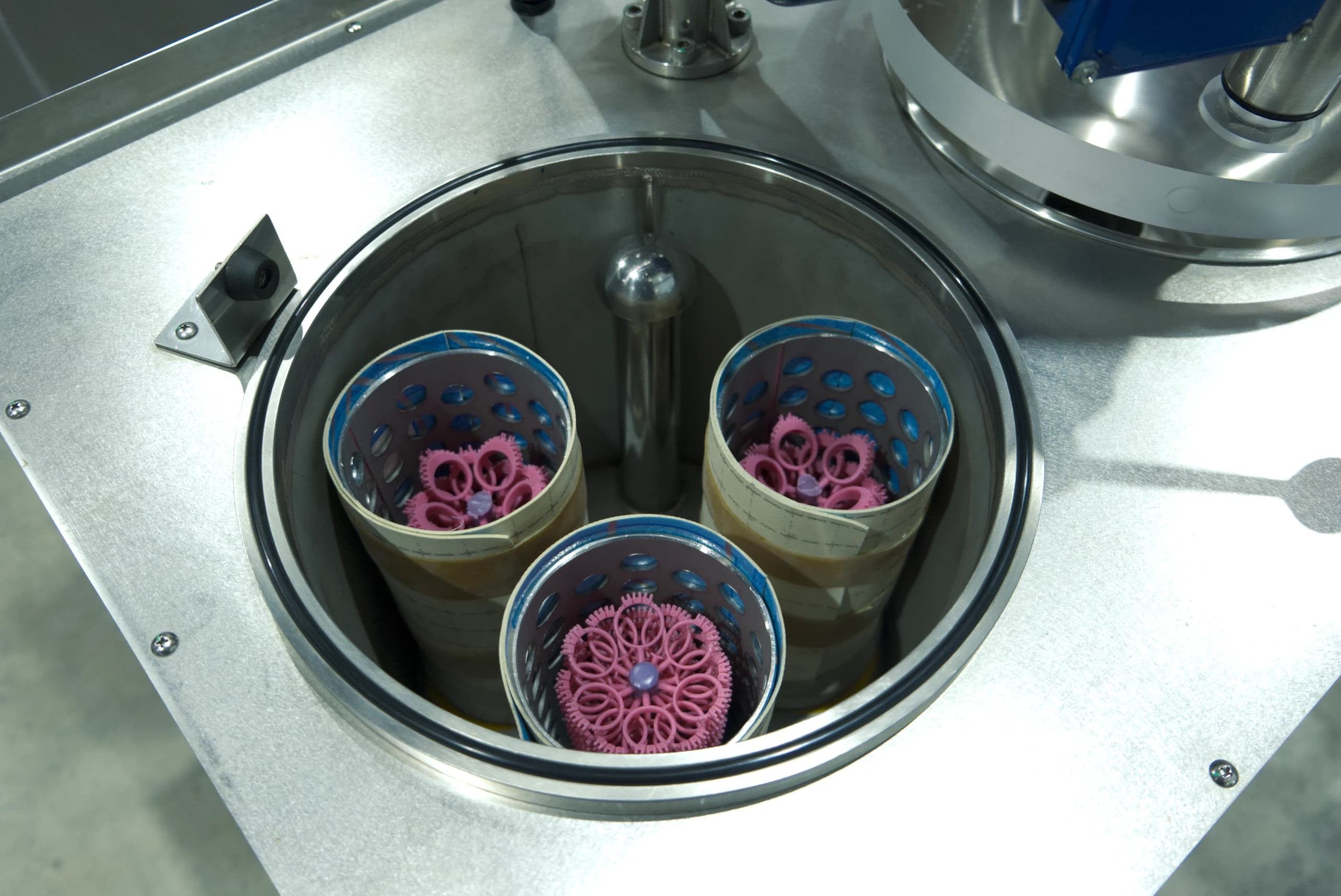

The IVM 10 investment mixer is a three flasks machine, capable of accommodating flask heights of up to 10 inches. Its mixing tank can hold up to 10 kilograms of mixed investment slurry, making it ideal for factories with lower production volumes that prioritize the quality of the flask molds.
Complementary Tools and Equipments.
TECH SPECS
Size and Weight

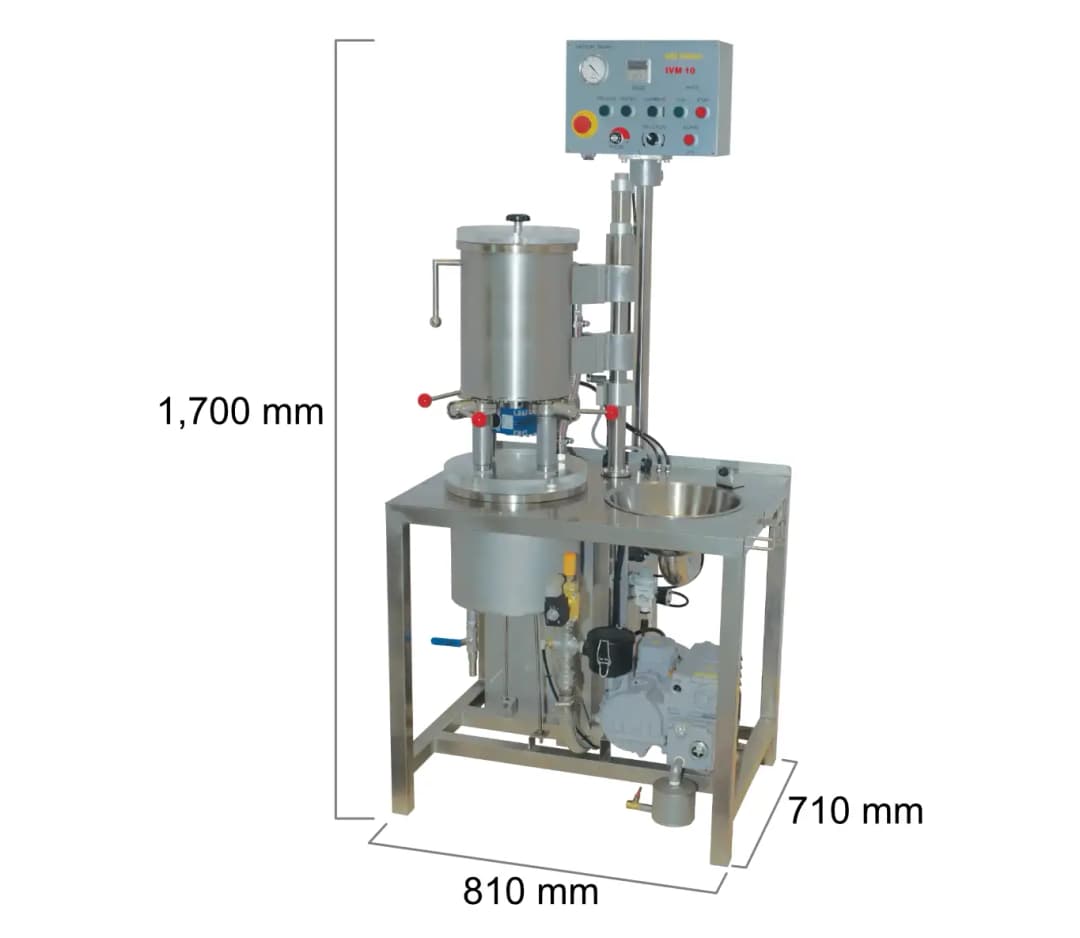

Dimension (WxDxH)
810 x 710 x 1700 mm
Weight
105 kg
Hardware
Power Source
380V 3 Phase 50Hz 6A + Neutral + Ground
Motor Power
1/4 hp
Vacuum System
Rotary Vane Vacuum Pump (25m³/hr)
Vibration System
-
Automation water filling
-
Weight Scale
-
Water Drain pipe
ø 2.5”
Working Property
Maximum mixing speed
200 RPM
Maximum Investment capacity
10 kg
Water Pressure
-
Air pressure
6 kg/cm²
User Interface and Operation
Control Panle
Analog Control Panel
Machine Capacity
Flask Size
ø 5.5”x10” (max)
Flask Capacity
3 Flasks (without flange)
