BURNOUT FURNACE
S6ECO
Contact Sales
oldmoon

S6ECO

Burnout Furnace

The S6ECO is designed to meet a variety of needs, particularly for investment burning and other materials curing (stress relief), making it ideal for tasks requiring high temperatures. It offers several notable features, such as:
1. Furnace Size: The Furnace has a 6-flask design (4” x 8” flask size), allowing for the simultaneous burning of multiple items.
2. Maximum Temperature: It can reach a maximum temperature of up to 1,000 °C, which is sufficient for applications requiring high heat.
3. Air Supply System: The furnace is equipped with an air supply system that enhances combustion efficiency, improving the overall burning process.
4. Recommended for Resin Work: This furnace is particularly suitable for resin (from 3D-print) work, which typically requires high temperatures and precise temperature control.

Overall, the S6ECO burnout furnace is an excellent choice for tasks that require high heat and precise temperature control to achieve optimal results.

TECH SPECS

Size and Weight

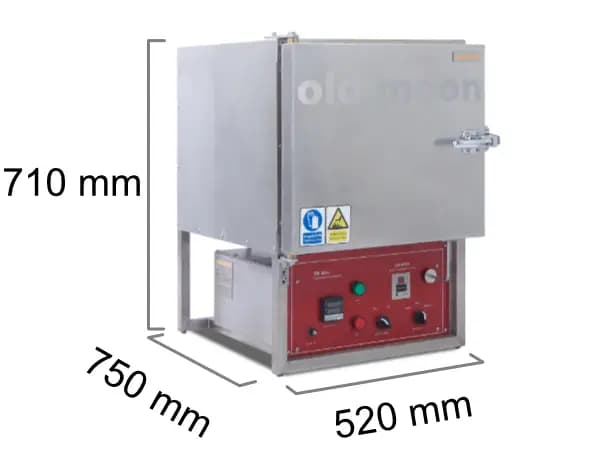

Dimension (WxDxH)
520 x 750 x 710 mm
Weight
62 kg
Hardware
Power Source
220V, 1 Phase, 50 Hz, 15A + Ground
Thermocouple
Type K
Heater coil
2 Sides (L / R)
Dewax Heater
-
After Burnner
-
Working Property
Furnace Maximum Temperature
1000 °C
After Burnner Maximum Temperature
-
Air pump
4 watt, 9 L/min
User Interface and Operation

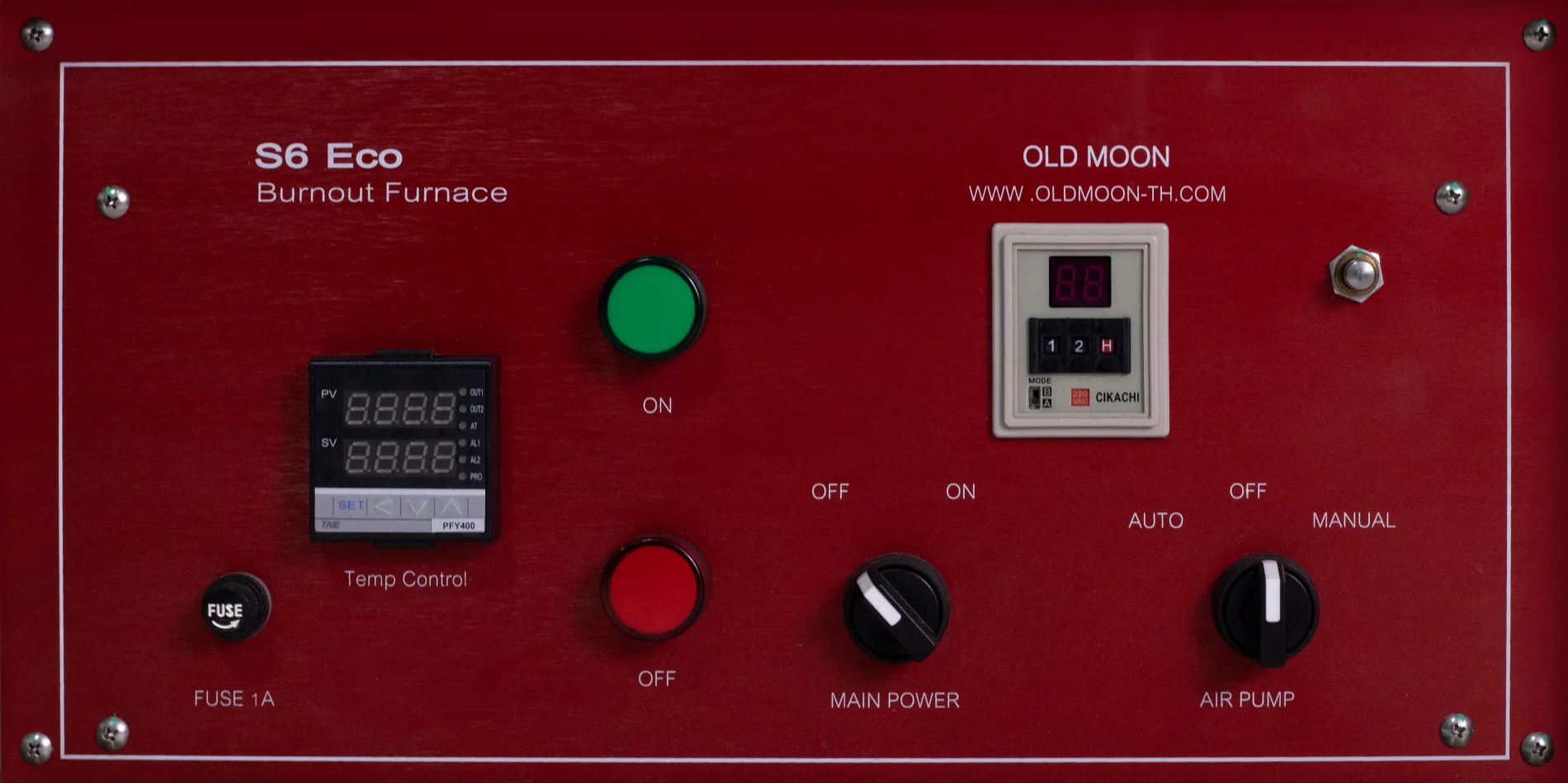

Control Panle
Digital Temp Control
Casting Program
18 program (8 steps / program)
Graph monitoring
-

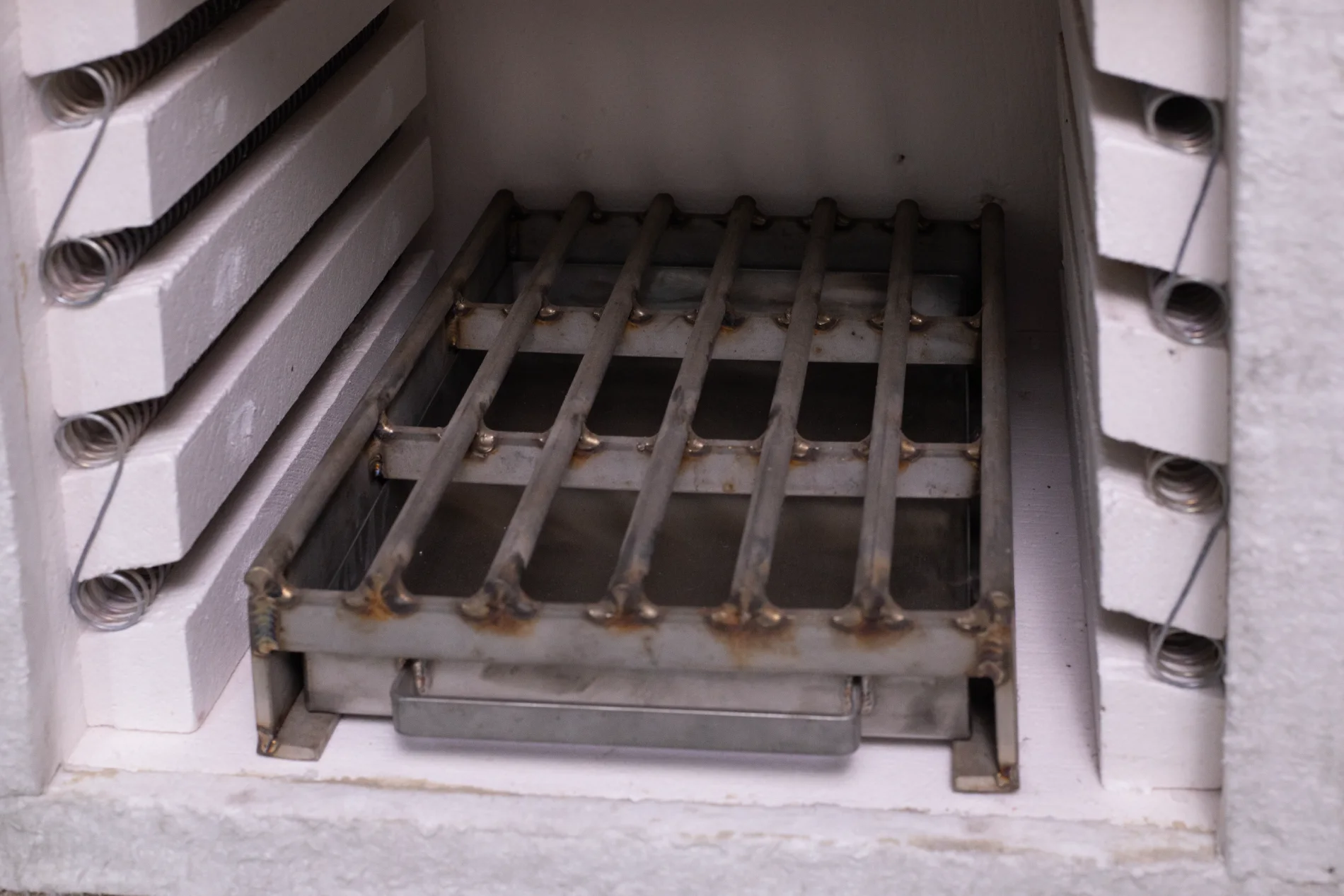

Furnace Capacity
Flask Size
ø: 4” x 8”
Flask Capacity
6 Flasks (without flange)
Diagnostic System
Error Warning
After Burnner Alarm, Furnace Alarm
Protection System
Door open protection
Stop supply power to heater
